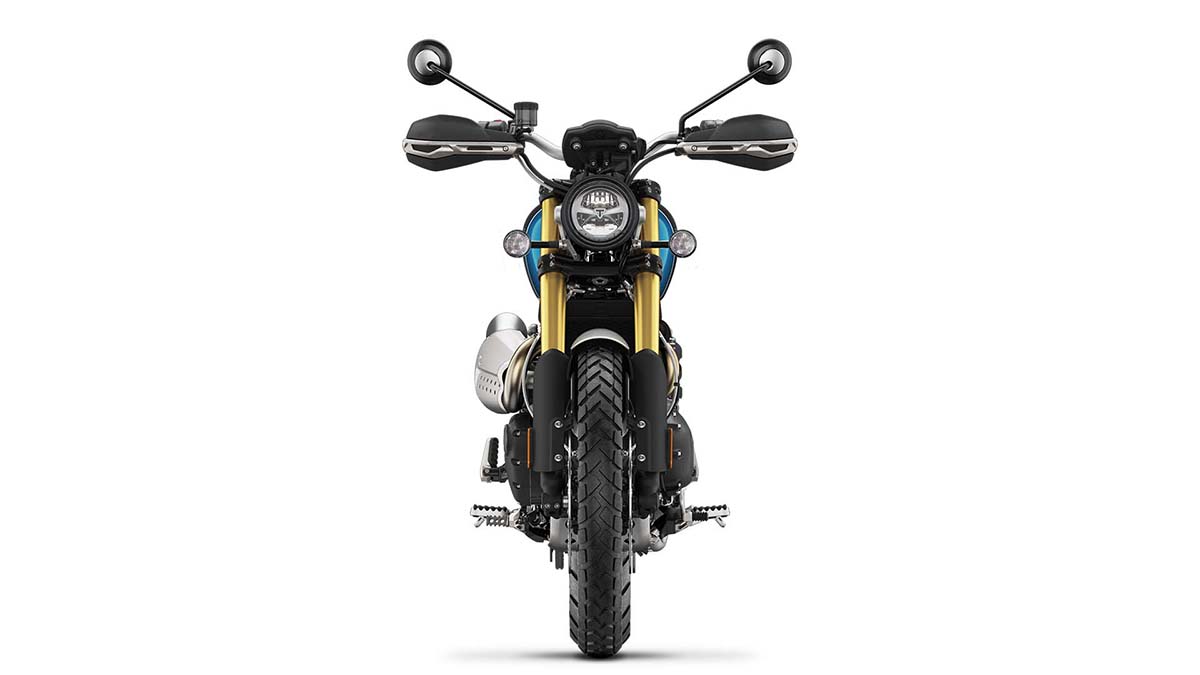

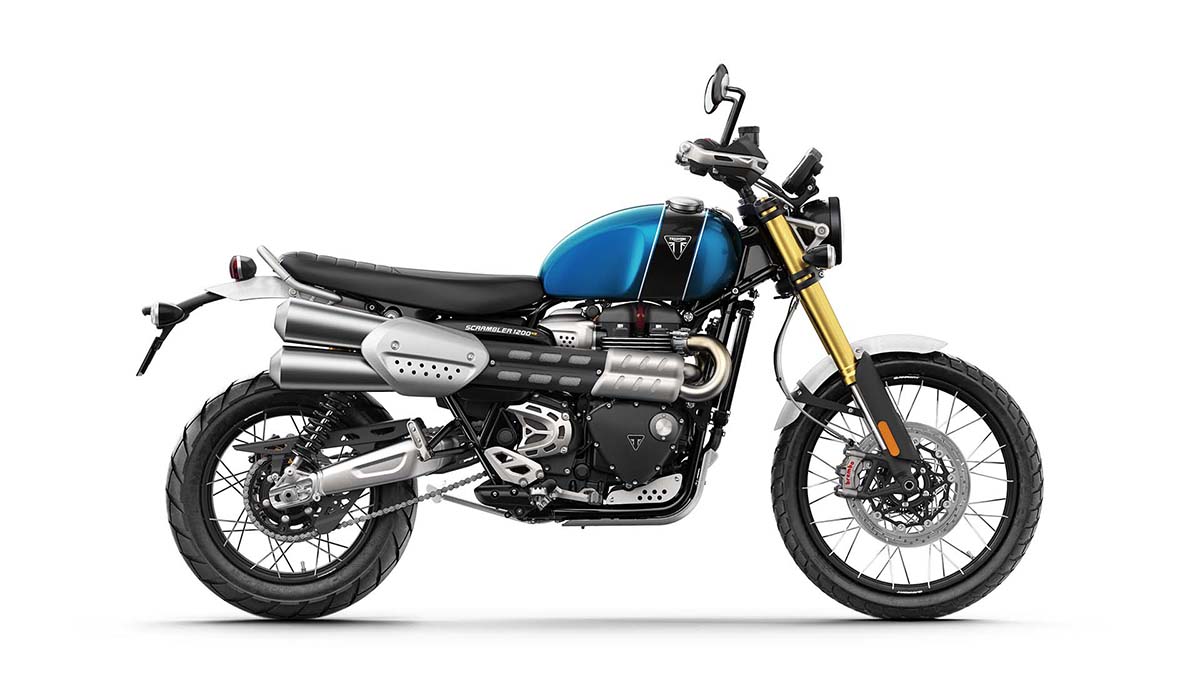

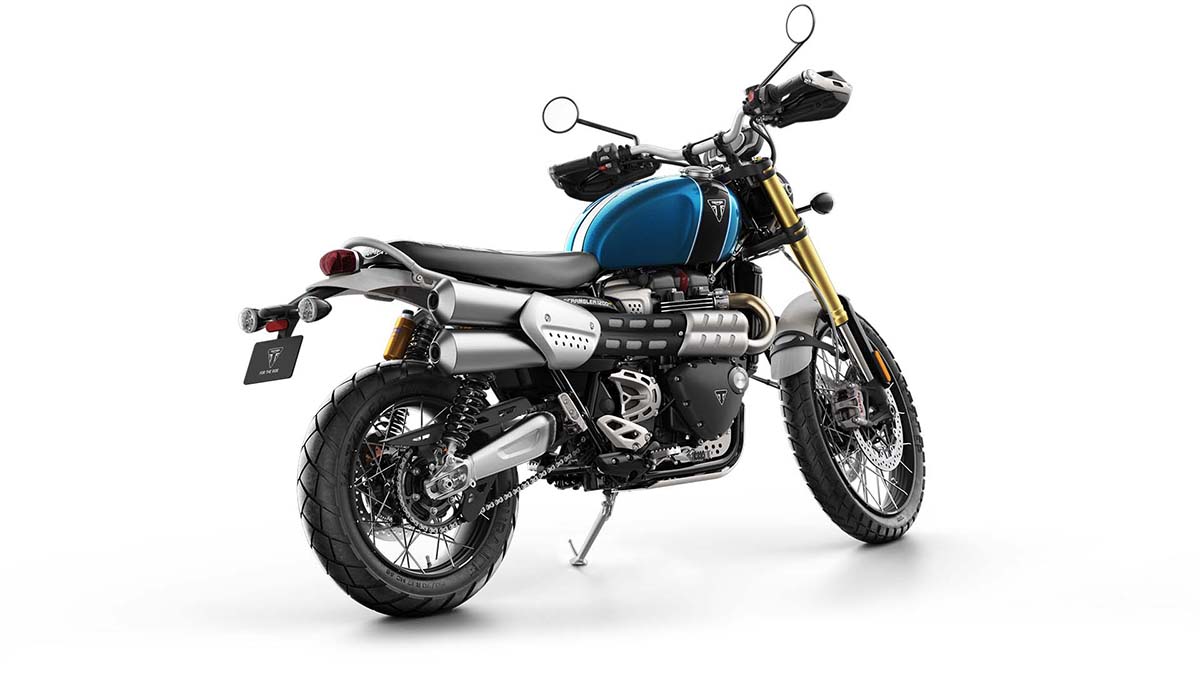

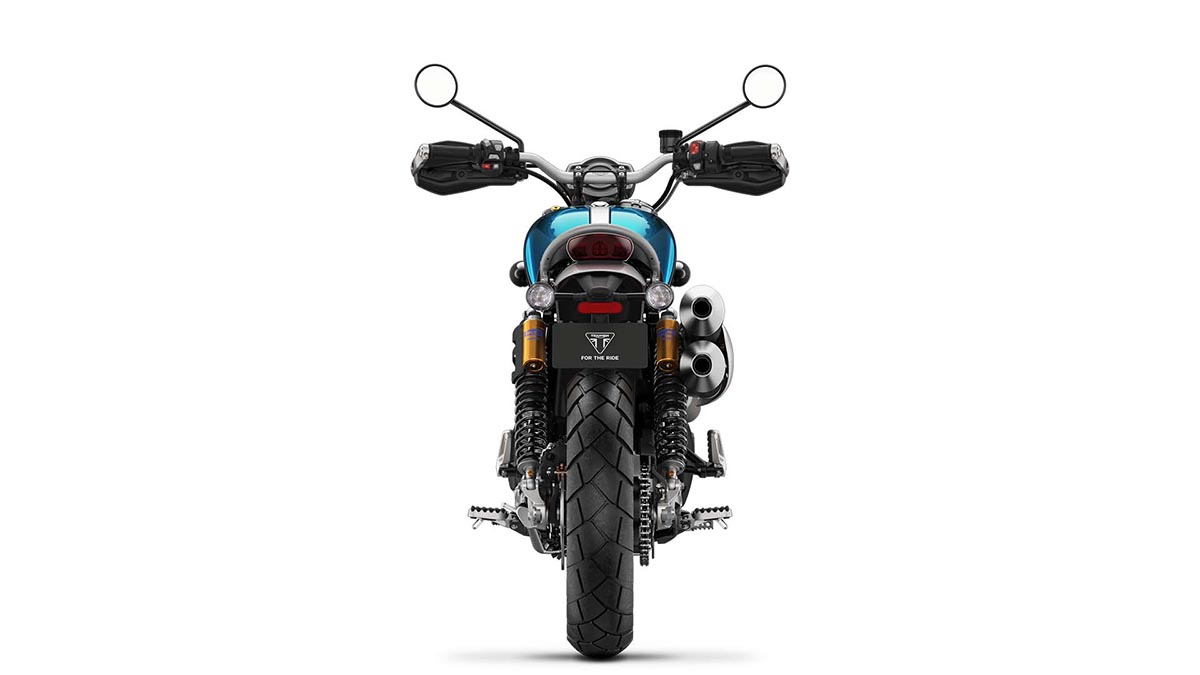

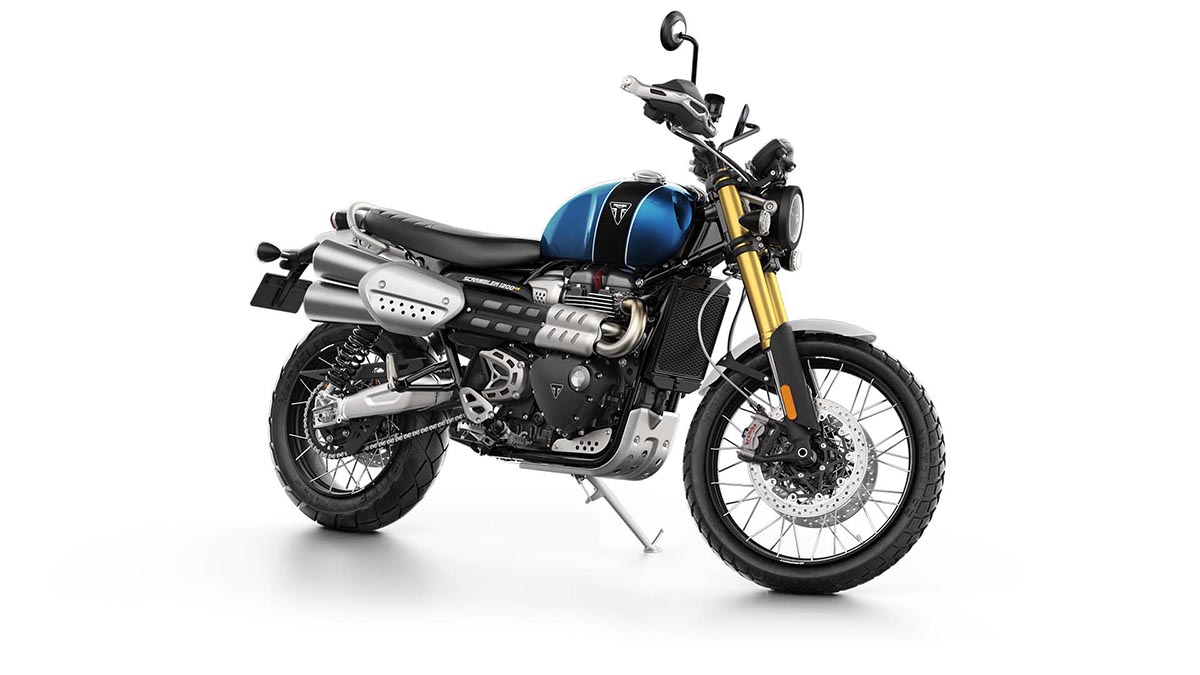

SCRAMBLER 1200 XE
SCRAMBLER 1200 XE
The top-specification all-new Scrambler 1200 XE represents the ultimate in motorcycling freedom. A motorcycle that enjoys unparalleled road and off-road capability, with a commanding riding position and an ergonomically optimised set-up that handles every bit as naturally on the tarmac as it does doing what even the most focused adventure bike can do, plus of course, full-on scrambling.
With a beautiful combination of poise, iconic design and premium finish, married to class-leading road-focused capability and a whole new benchmark in off-road scrambling performance - the result is nothing short of breath-taking.
The equipment specification, which includes premium Öhlins long travel rear suspension and Brembo M50 brakes, is without doubt category dominating. We've also packed the XE with advanced technology to give the rider everything that's needed to approach every ride with poise and assurance, with class-leading features that include cornering optimised ABS and traction control, and 6 riding modes including Off-Road Pro.
To further reflect its top-of-the-range status, there are many premium finishes and details that are exclusive to the 1200 XE, and over 80 custom Scrambler 1200 accessories and two inspiration kits to help spec up your scrambler to go everywhere you need - from town, to touring, to tearing up the desert.

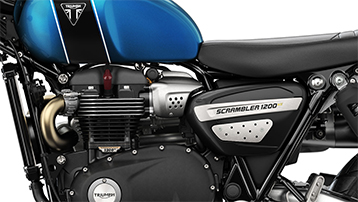

1200 CC ENGINE
Updated for Euro 5 compliance with enhanced emissions and a dedicated Scrambler tune, for a smooth, torque-rich delivery from the iconic 1200cc Bonneville twin
ENHANCED TWIN HIGH LEVEL EXHAUST
The deep, Scrambler tone from the signature twin high-level exhaust now features for 2021 improved heat distribution for enhanced rider comfort
CLASS LEADING TECHNOLOGY
Cruise control, ride-by-wire, Scrambler specific riding modes, ABS and easy-to-read TFT instruments bring class-leading technology to this modern classic.
RIDING MODES
In addition to the Road, Rain, Sport, Off-Road and Rider-Configurable riding modes, the XE features 'Off-Road Pro' for full on Scrambler fun.
FULL COLOUR TFT
Easy to read in all light conditions, the scrambler's advanced full-colour TFT display can be configured to suit you and your riding needs
ILLUMINATED SWITCHES
Intuively designed, the Scrambler's switches are backlit for easy, at-a-glance rider control, perfect for even the darkest adventures.
SPECIFICATION AND CAPABILITY
The Scrambler's category-dominating specification and high-end equipment deliver all-road capability for an adventure riding experience like no other.
DEDICATED SCRAMBLER FRAME
The dedicated frame and long travel aluminium swinging arm are designed for pure Scrambler performance when the going gets tough.
OPTIMISED CORNERING
Optimised cornering traction control and ABS, supported by an IMU, deliver the optimum performance at all lean angles, for a class-leading and confidence-inspiring ride.
CLASS-LEADING SUSPENSION
Premium Showa forks and twin spring Ohlins RSUs give 200mm of wheel travel for percise, comfortable and confident riding on all surfaces.
PREMIUM BRAKING
Category-leading Brembo Monobloc M50 front calipers with twin 320mm floating discs and ABS deliver assured braking power in all conditions.
| ENGINE & TRANSMISSION | |
|---|---|
| Type | Liquid-cooled, 8 valve, SOHC, 270° crank angle parallel-twin |
| Capacity | 1200 cc |
| Bore | 97.6 mm |
| Stroke | 80 mm |
| Compression | 11:1 |
| Max Power EC | 90PS/ 89bhp (66.2kW) @7,250rpm |
| Max Torque EC | 110 Nm @ 4500 rpm |
| System | Multipoint sequential electronic fuel injection |
| Exhaust | Brushed 2 into 2 exhaust system with brushed high level silencers |
| Final Drive | X ring chain |
| Clutch | Wet, multi-plate assist clutch |
| Gearbox | 6-speed |
| CHASSIS | |
|---|---|
| Frame | Tubular steel |
| Swingarm | Twin-sided, aluminium, 579mm long |
| Front Wheel | Tubeless 36-spoke 21 x 2.15in, aluminium rims |
| Rear Wheel | Tubeless 32-spoke 17 x 4.25in, aluminium rims |
| Front Tyre | 90/90-21 |
| Rear Tyre | 150/70 R17 |
| Front Suspension | Showa 47mm fully adjustable upside down forks, 250mm travel |
| Rear Suspension | Fully adjustable Ohlins twin shocks with piggy back reservoir, 250mm rear wheel travel |
| Front Brakes | Twin 320mm discs, Brembodiscs, Brembo M50 4-piston radial monobloc calipers, ABS |
| Rear Brakes | Single 255mm disc, Brembo 2-piston floating caliper, ABS |
| Instrument Display and Functions | TFT multifunctional instrument pack with digital speedometer, trip computer, digital tachometer, gear position indicator, fuel gauge, service indicator, clock and rider modes (Rain/Road/Sport/Off-road/Rider-Customisable) |
| DIMENSIONS & WEIGHTS | |
|---|---|
| Width Handlebars | 905 mm |
| Height Without Mirror | 1250 mm |
| Seat Height | 870 mm |
| Wheelbase | 1570 mm |
| Rake | 26.9° |
| Trail | 129.2mm |
| Dry Weight | 230 kg |
| Tank Capacity | 16 L |
| FUEL CONSUMPTION | |
|---|---|
| Fuel Consumption | 4.6 litres / 100 km |
| CO2 Figures | 105 g/km EURO 5 CO2 emissions and fuel consumption data are measured according to regulation 168/2013/EC. Figures for fuel consumption are derived from specific test conditions and are for comparative purposes only. They may not reflect real driving results. |
